Emergency Push Button

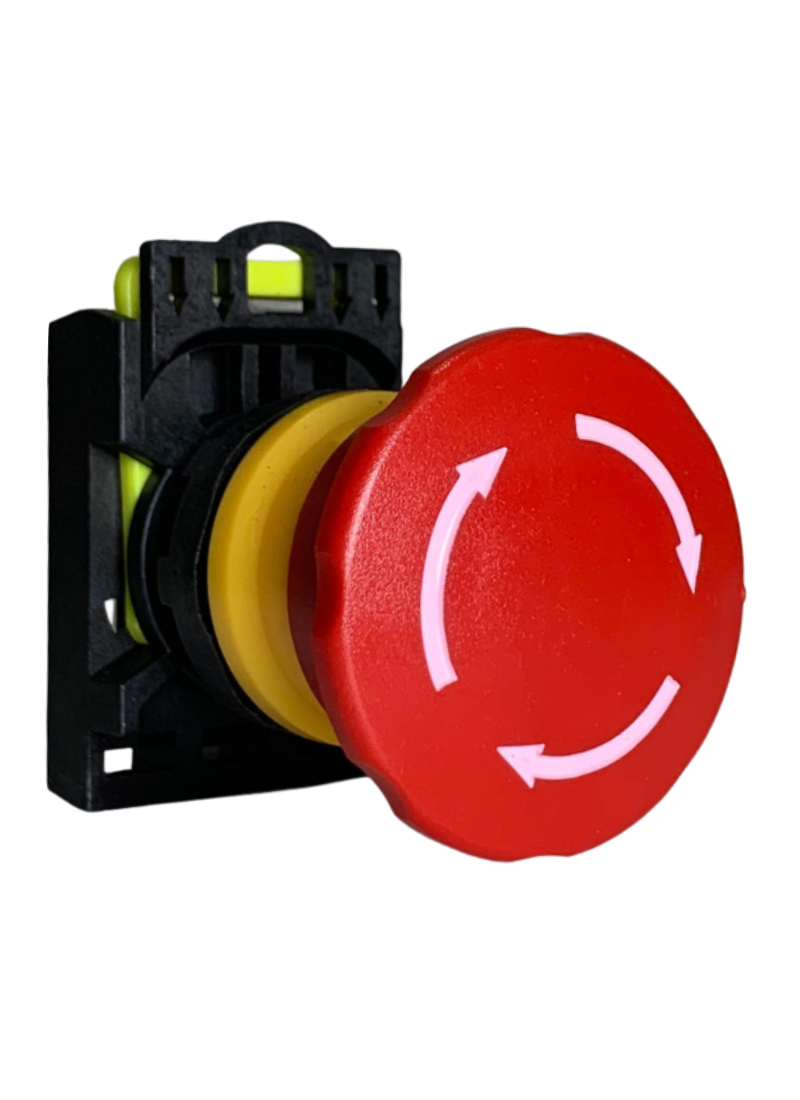

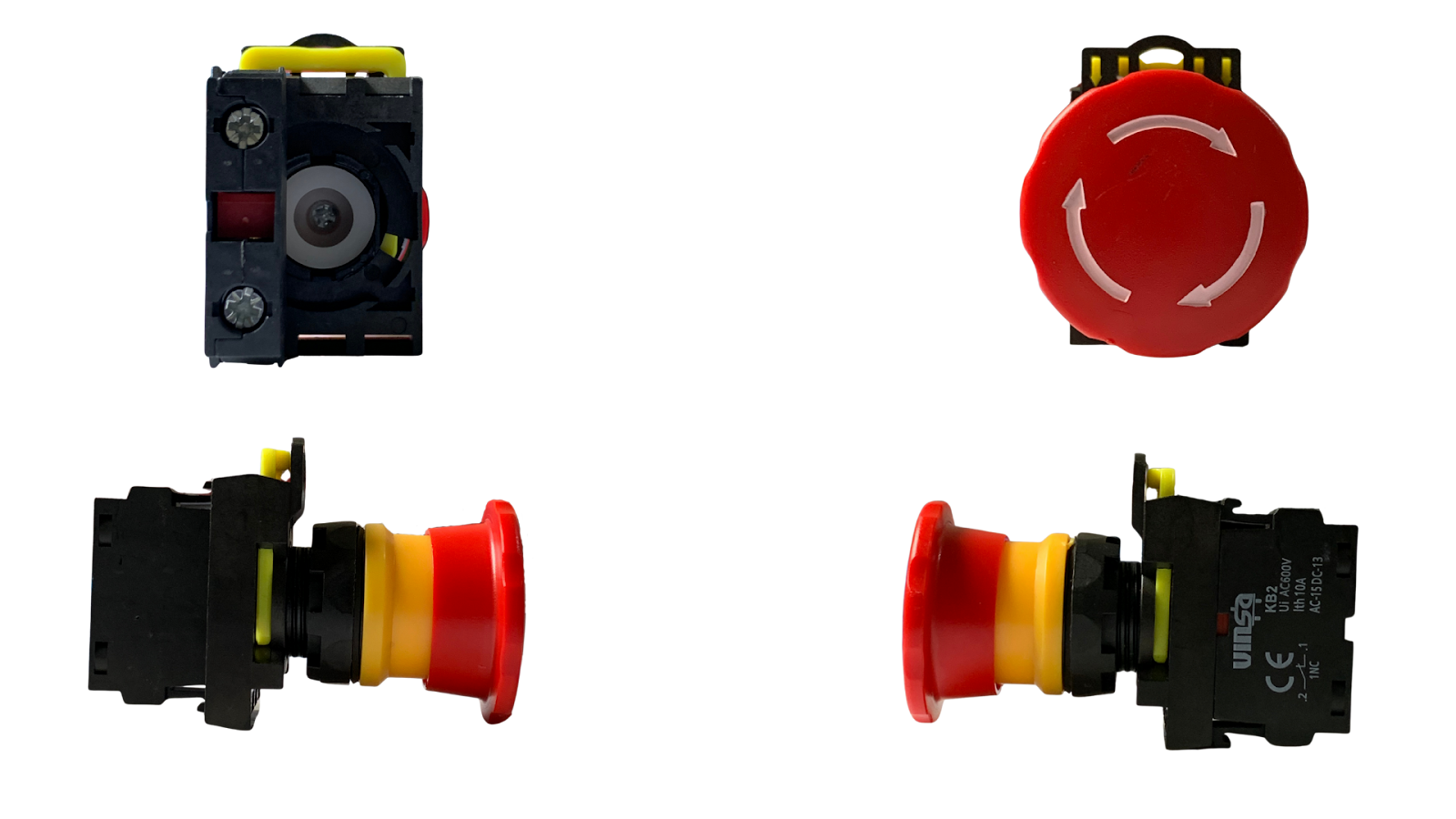

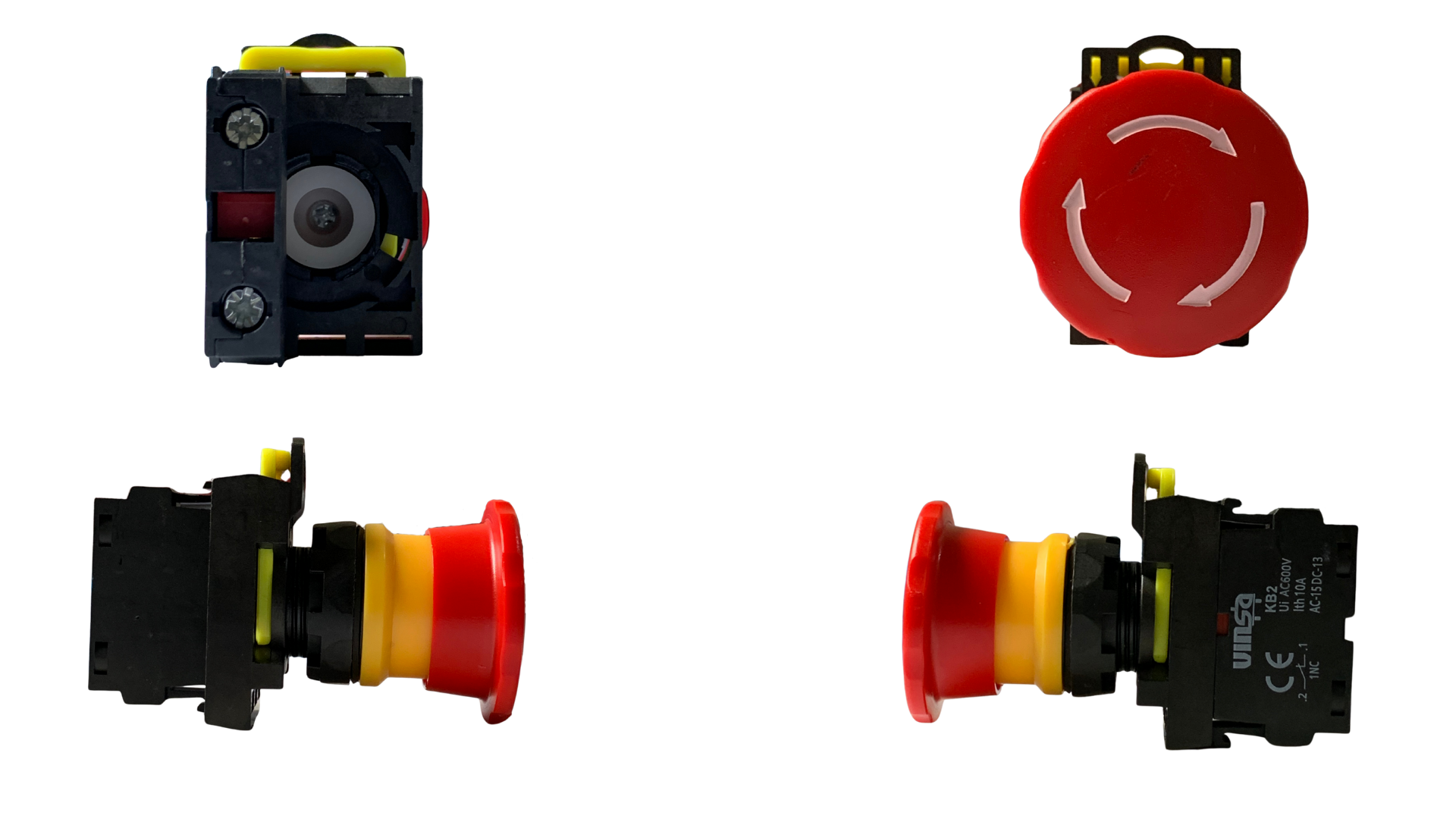

Emergency Stop Push Button Twist Release Red 1N/C
Product Code:
KB2AS8442
Type
Twist Release
Series
KB 2 Series
Technical Specifications
Color :
Red
Contact :
1N/C
KB2AS8442 :
Harmony KB2
Product OR Component Type :
Emergency Push Button
Bezel Material :
Plastic Dark Grey Plastic
Head Type :
Standard
Fixing Collar Material :
Plastic
Mounting Diameter :
22.5 MM
Type OF Operator :
Twist Release
Operator Profile :
Red Mushroom Ø 40 MM, Unmarked
Contacts Type And Composition :
1 NC
Contact Operation :
Slow-Break
Connections - Terminals :
Screw Clamp Terminals, <= 2 X 1.5 mm2 With Cable End IEC 60947-1 Screw Clamp Terminals, 1 X 0.22...2 X 2.5 mm2 Without Cable End IEC 60947-1
Height :
42 MM
Width :
40 MM
Depth :
78 MM
Net Weight :
0.045 KG
Contacts Usage :
Standard Contacts
Positive Opening :
With Conforming TO IEC 60947-5-1 Appendix K
Operating Travel :
1.5 MM (NC Changing Electrical State) 4.3 MM (Total Travel)
Operating Force :
1000000 Cycles
Contacts Material :
Silver Alloy (AG/NI)
[Ith] Conventional Free Air Thermal Current :
10 A IEC 60947-5-1
[UI] Rated Insulation Voltage :
600 V 3)IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage :
Withstand Voltage 6 KV IEC 60947-1
IP Degree OF Protection :
IP55
IK Degree OF Protection :
IK03 Conforming TO IEC 50102
Warranty (IN Months) :
12
