Push Button

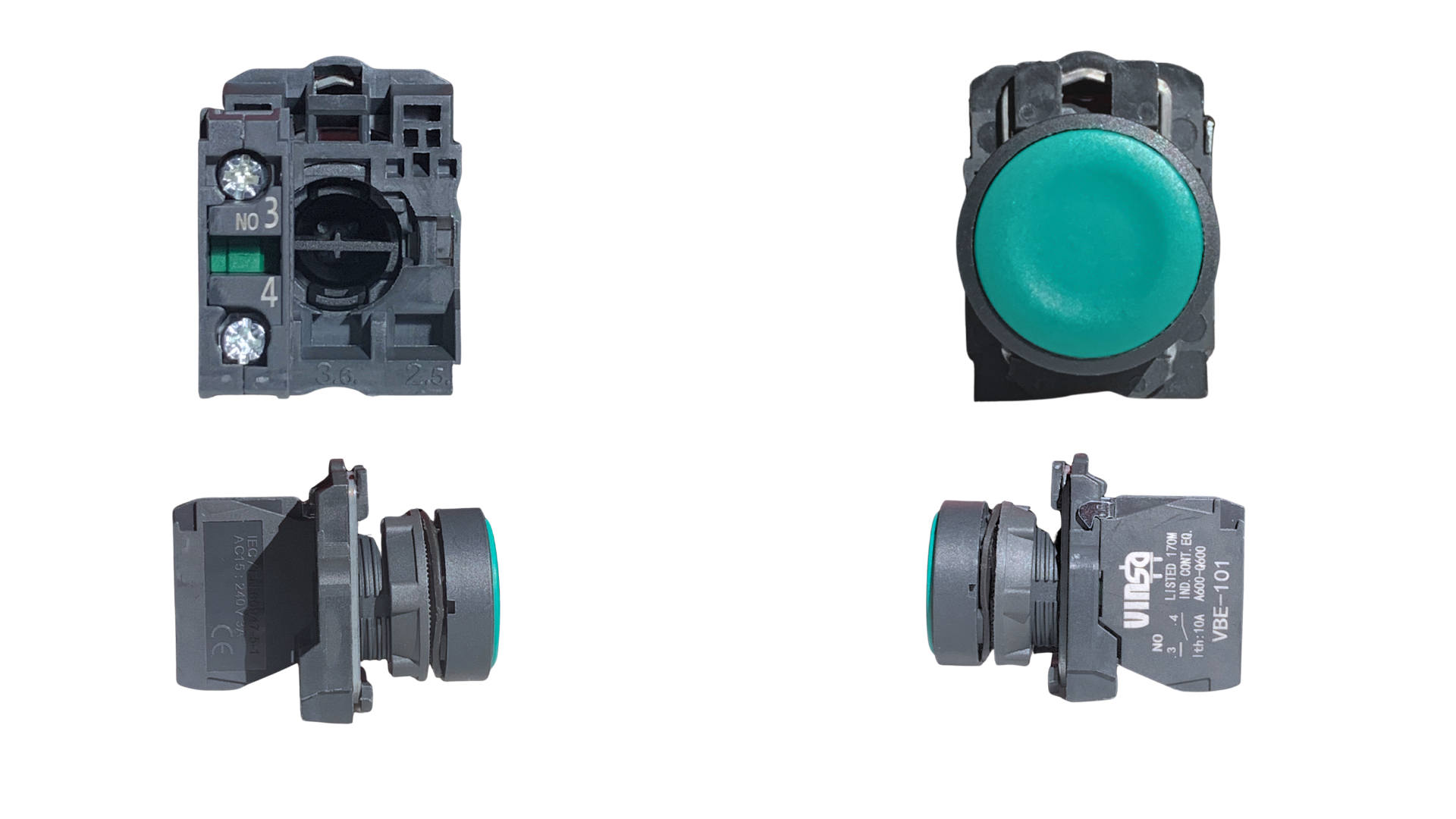

Flush Button Spring Return Momentary Green 1 N/O
Product Code:
KB5AA31
Type
Flush Button Spring Return Momentary
Series
KB 5 Series
Technical Specifications
Color :
Green
Voltage :
1N/O
Range OF Product :
Harmony KB5
Product OR Component Type :
Push-Button
Bezel Material :
Plastic Dark Grey Plastic
Head Type :
Standard
Fixing Collar Material :
Plastic
Mounting Diameter :
22.5 MM
Type OF Operator :
Spring Return Momentary
Operator Profile :
Green Flush, Unmarked
Contacts Type And Composition :
1 NO
Contact Operation :
Slow-Break
Connections - Terminals :
Screw Clamp Terminals, <= 2 X 1.5 mm2 With Cable End IEC 60947-1 Screw Clamp Terminals, 1 X 0.22...2 X 2.5 mm2 Without Cable End IEC 60947-1
Height :
40 MM
Width :
27 MM
Depth :
51 MM
Net Weight :
0.039 KG
Contacts Usage :
Standard Contacts
Positive Opening :
Without
Operating Travel :
0.1 IN (2.6 MM) NO Changing Electrical State) 0.2 IN (4.3 MM) Total Travel)
Operating Force :
3.8 N NO Changing Electrical State
Mechanical Durability :
1000000 Cycles
Contacts Material :
Silver Alloy (AG/NI)
[Ith] Conventional Free Air Thermal Current :
10 A IEC 60947-5-1
[UI] Rated Insulation Voltage :
600 V 3)IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage :
6 KV IEC 60947-1
IP Degree OF Protection :
IP55
IK Degree OF Protection :
IK03 Conforming TO IEC 50102
Warranty (IN Months) :
12
