Illuminated Push Button

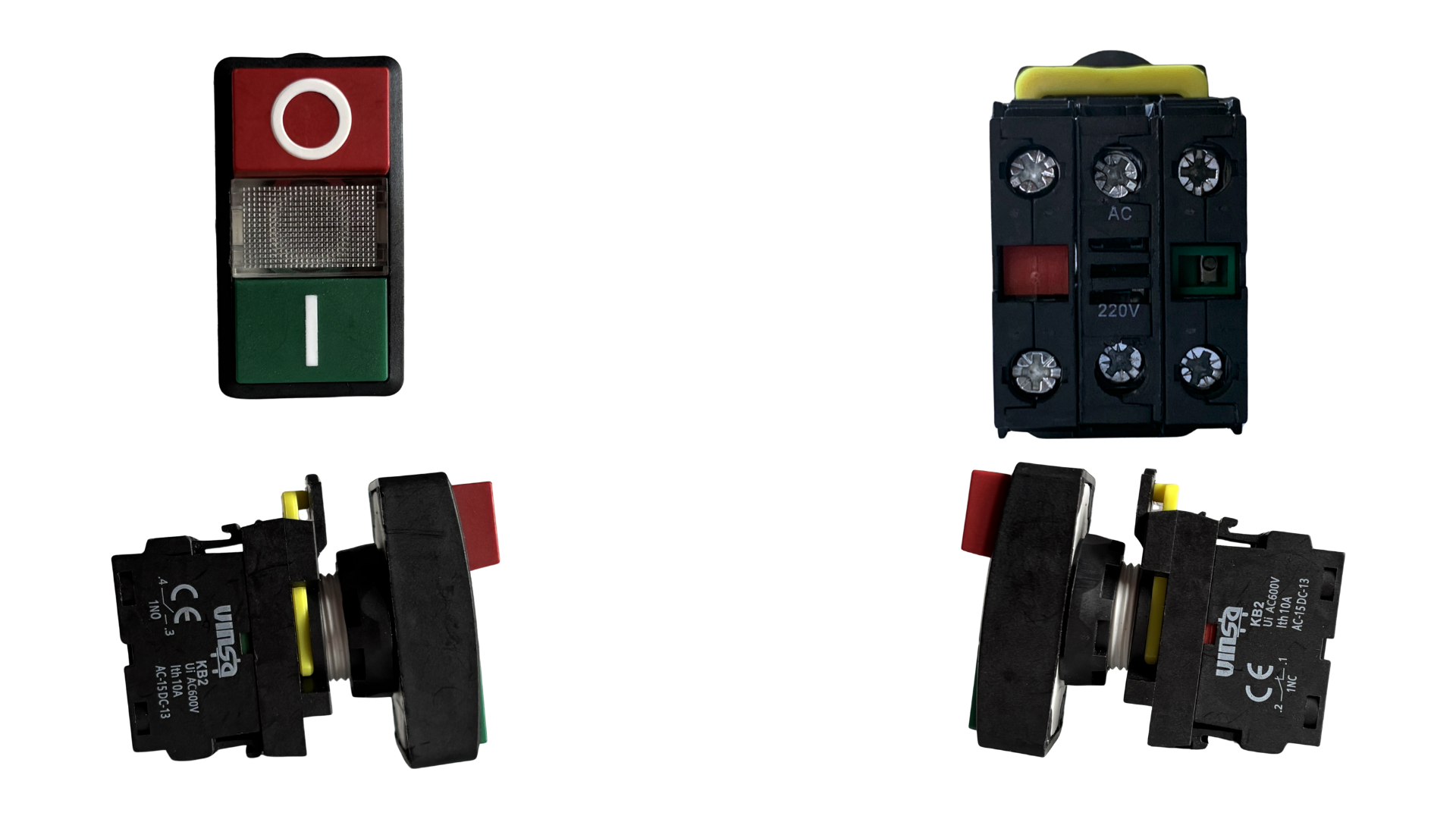

Illuminated On Off Flush Button Green + Red 220VAC 1N/O + 1N/C
Product Code:
KB2A11HDRG
Type
Illuminated On Off Flush Button
Series
KB 2 Series
Technical Specifications
Color :
Green + Red
Contact :
1N/O + 1N/C
Range OF Product :
Harmony KB2
Product OR Component Type :
Complete Illuminated Double Headed Push Button
Bezel Material :
Plastic
Head Type :
Standard
Fixing Collar Material :
Plastic
Mounting Diameter :
22 MM
Type OF Operator :
Spring Return
Operator Profile :
Green Flush, I (White)
Contacts Type And Composition :
1NO + 1NC
Contact Operation :
Slow-Break
Connections - Terminals :
Screw Clamp Terminals, <= 2 X 1.5 mm2 With Cable End IEC 60947-1 Screw Clamp Terminals, 1 X 0.22...2 X 2.5 mm2 Without Cable End IEC 60947-1
Height :
55 MM
Width :
30 MM
Depth :
70 MM
Net Weight :
0.066 KG
Contacts Usage :
Standard Contacts
Positive Opening :
Without
Operating Travel :
1.5 MM (NC Changing Electrical State) 2.6 MM (NO Changing Electrical State) 4.3 MM (Total Travel)
Operating Force :
3.5 N NC Changing Electrical State 3.8 N NO Changing Electrical State
Mechanical Durability :
1000000 Cycles
Contacts Material :
Silver Alloy (AG/NI)
[Ith] Conventional Free Air Thermal Current :
10 A IEC 60947-5-1
[UI] Rated Insulation Voltage :
600 V (Pollution Degree 3) Conforming TO IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage :
6 KV IEC 60947-1
IP Degree OF Protection :
IP55
IK Degree OF Protection :
IK03 Conforming TO IEC 50102
Warranty (IN Months) :
12
