Technical Specifications
Color :
Green
Voltage :
220VAC
Range OF Product :
Harmony KB2
Product OR Component Type :

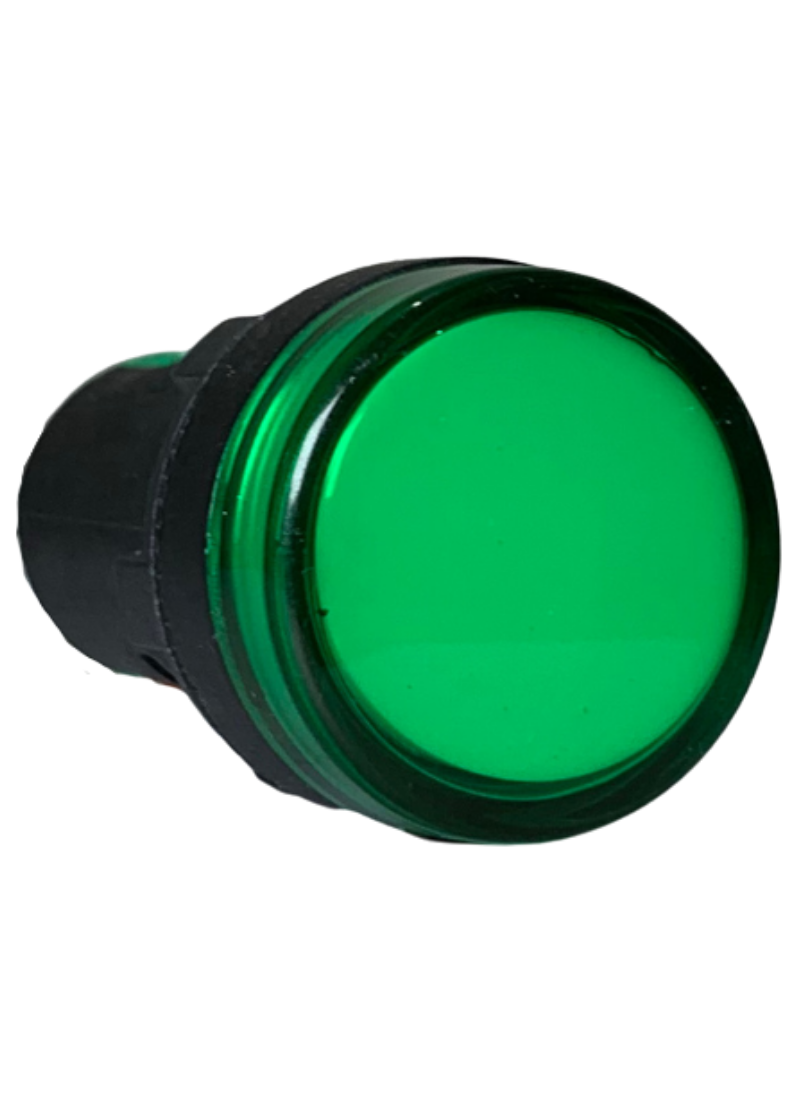

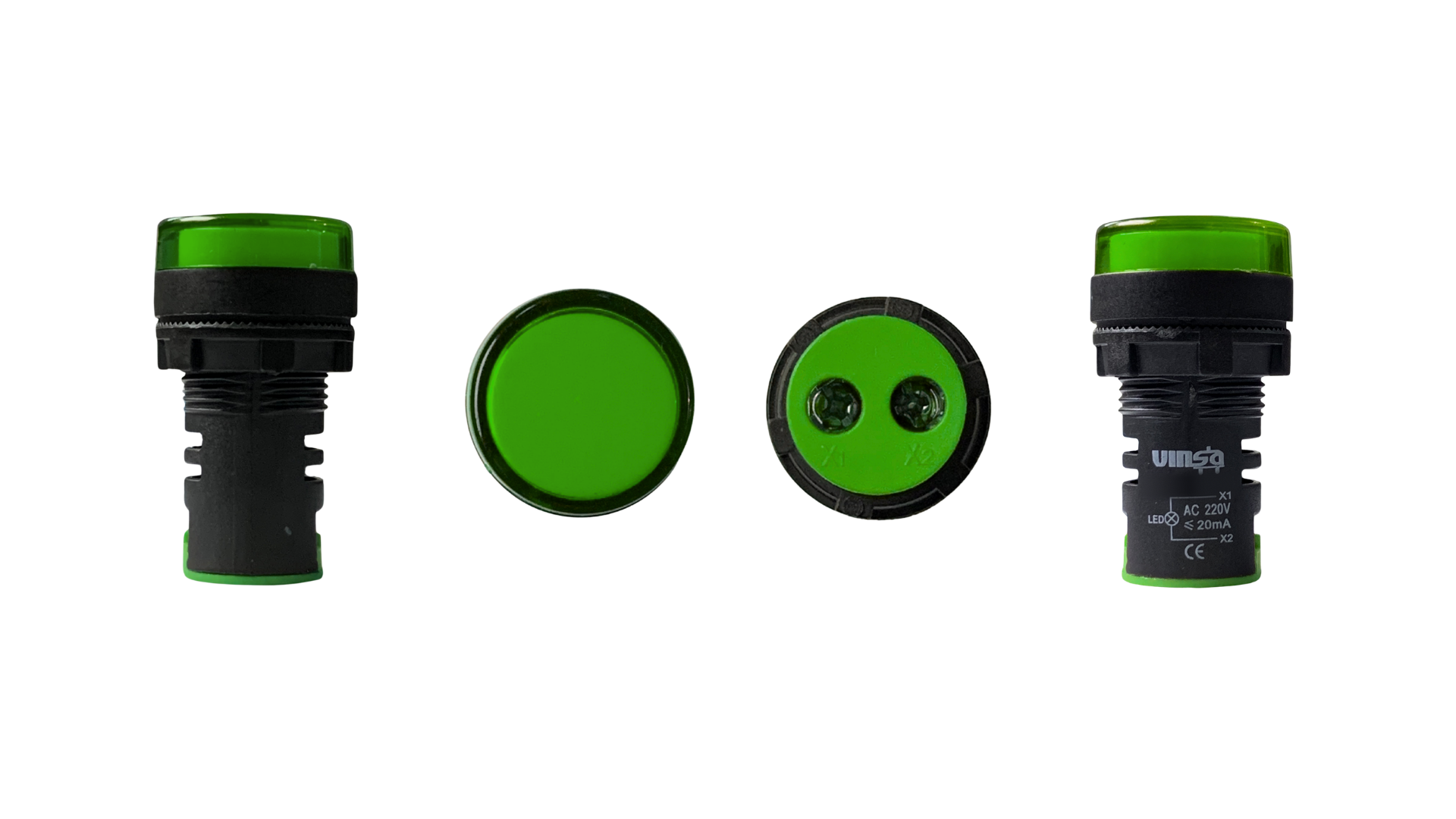

Pilot Lamp
Bezel Material :
Plastic Dark Grey Plastic
Head Type :
Standard
Fixing Collar Material :
Plastic
Mounting Diameter :
22 MM
Connections - Terminals :
Screw Clamp Terminals, <= 2 X 1.5 mm2 With Cable End IEC 60947-1 Screw Clamp Terminals, 1 X 0.22...2 X 2.5 mm2 Without Cable End IEC 60947-1
Light Source :
LED
Bulb Base :
Integral LED
[US] Rated Supply Voltage :
220 VAC
Cap/Operator OR Lens Colour :
Green
Height :
22 MM
Width :
22 MM
Depth :
50 MM
Net Weight :
0.017 KG
Device Mounting :
Fixing Hole - Diameter: 22.5 MM 22.3 +0.4/0 Conforming TO IEC 60947-5-1
Fixing Mode :
Fixing Nut Beneath Head: 2...2.4 N.M
Signalling Type :
Steady
Contacts Material :
Silver Alloy (AG/NI)
[Ith] Conventional Free Air Thermal Current :
10 A IEC 60947-5-1
[UI] Rated Insulation Voltage :
250 V (Pollution Degree 3) Conforming TO IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage :
6 KV IEC 60947-1
IP Degree OF Protection :
IP55
IK Degree OF Protection :
IK03 Conforming TO IEC 50102
Warranty (IN Months) :
12
