Selector Switch

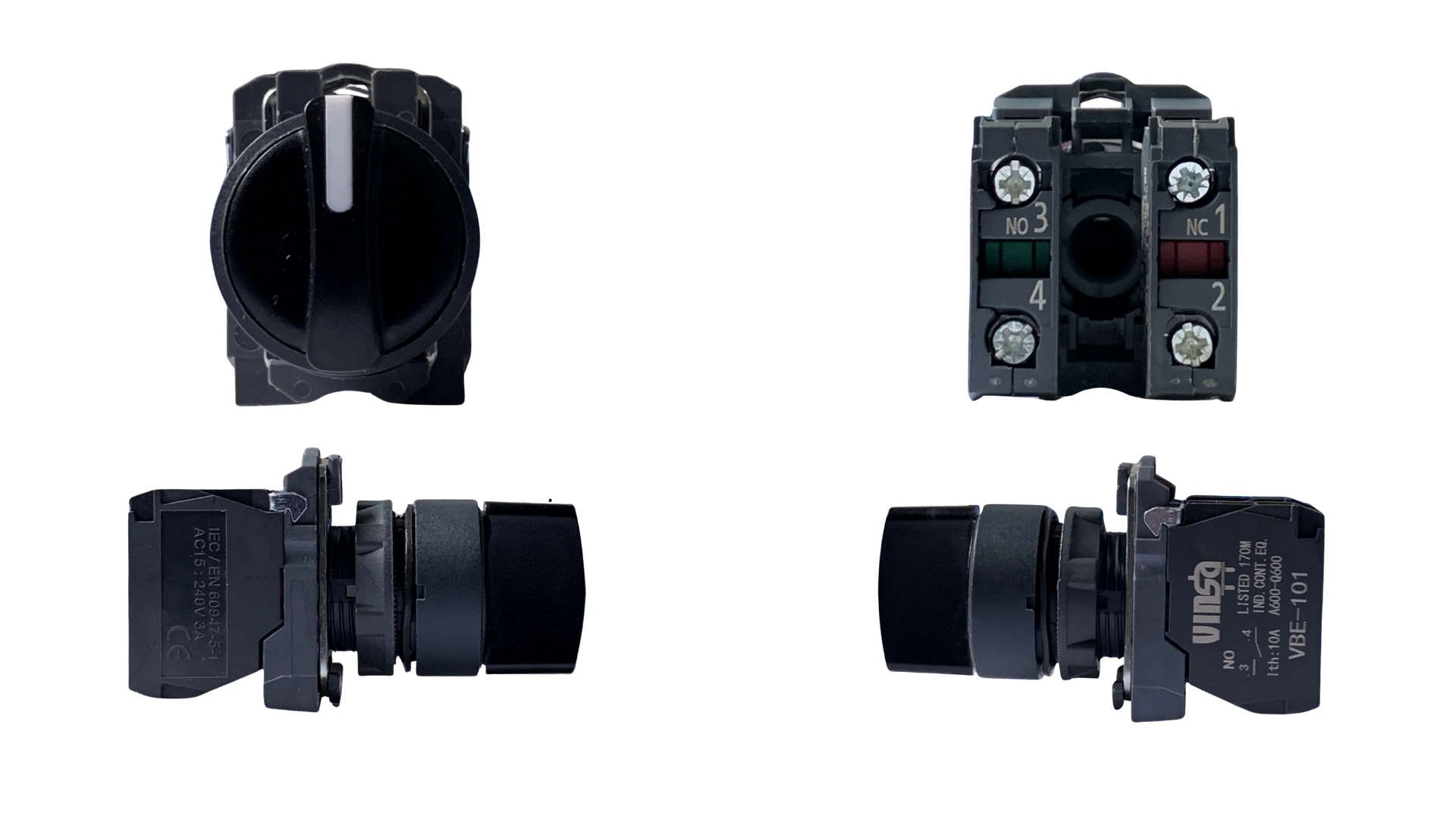

Selector Switch 3 Position Spring Return Black 1 N/O + 1 N/C KB5AD53
Product Code:
KB5AD53
Type
3 Position Spring Return
Series
KB 5 Series
Technical Specifications
Color :
Black
Contact :
1 N/O + 1 N/C
Range OF Product :
Harmony KB5
Product OR Component Type :
Selector Switch
Bezel Material :
Plastic Dark Grey Plastic
Head Type :
Standard
Fixing Collar Material :
Plastic
Mounting Diameter :
22.5 MM
Type OF Operator :
Stay Put
Operator Profile :
Black Standard Handle
Operator Position Information :
3 Positions +/- 45°
Contacts Type And Composition :
1NO + 1NC
Contact Operation :
Slow-Break
Connections - Terminals :
Screw Clamp Terminals, <= 2 X 1.5 mm2 With Cable End IEC 60947-1 Screw Clamp Terminals, 1 X 0.22...2 X 2.5 mm2 Without Cable End IEC 60947-1
Height :
42 MM
Width :
27 MM
Depth :
91 MM
Net Weight :
0.079 KG
Contacts Usage :
Standard Contacts
Positive Opening :
With Conforming TO IEC 60947-5-1 Appendix K
Operating Travel :
0.1 IN (2.6 MM) NO Changing Electrical State) 0.2 IN (4.3 MM) Total Travel)
Operating Force :
0.14 N.M NO Changing Electrical State
Mechanical Durability :
1000000 Cycles
Contacts Material :
Silver Alloy (AG/NI)
[Ith] Conventional Free Air Thermal Current :
10 A IEC 60947-5-1
[UI] Rated Insulation Voltage :
600 V (Pollution Degree 3) Conforming TO IEC 60947-1
[Uimp] Rated Impulse Withstand Voltage :
6 KV IEC 60947-1
IP Degree OF Protection :
IP55
IK Degree OF Protection :
IK03 Conforming TO IEC 50102
Warranty (IN Months) :
12
Interested in This Product?
Contact us for pricing and availability
